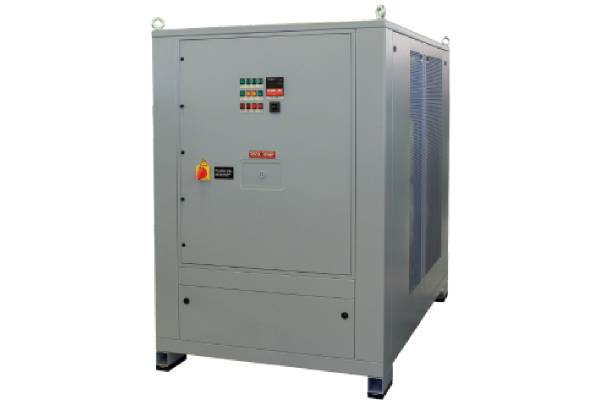

TT-708 Y
Heating & Cooling Unit
Temperature range 80°C up to 300°C
Heating capacity 72 kW / 120 kW / 144 kW
Operational use:
rollers, plates, double walled vessels and other heavy duty use
TECHNICAL DATA: |
There are 3 different models available |
||
| Temperature range | up to 300°C with heat transfer oil TOOL-THERM SH-3 | ||
| Temperature control | self-optimizing, electronic microprocessor controller MP-888 with digital display of the set and actual value. Automatic temperature monitoring. |
||
| Flow control | electronically, with digital display and automatic control of the minimum flow. | ||
| Heating capacity | 72 kW | 120 kW | 144 kW |
| Switchable in stages | 16 / 16 / 16 / 8 / 8 / 8 | on request | 32 / 32 / 32 / 16 / 16 / 16 |
| Cooling capacity | approx. 600 kW – see diagram cooling capacity | ||
| Pump capacity | motor 7,5 kW | ||
| Pressure mode | max. 4 bar / approx. 200 – 500 l/min – see diagram pump capacity | ||
| Expansion tank capacity | 130 litres | 130 litres | 130 litres |
| Filling Amount | 100 litres | 200 litres | 200 litres |
| Expansion volume | 100 litres | 100 litres | 100 litres |
| Connections | |||
| Oil circuit | Flange connection DN 50 | ||
| Cooling water | flange-outside Ø 165 mm, with 4 holes Ø 18 mm on a screw hole circle of 125 mm recommended sealing: 100 x 60 x 2 mm | ||
| 1 1/2″ BSP female thread (required water pressure 1.5 – 4 bar) | |||
| Frequency inverter for regulation of pressure | yes | yes | yes |
| Dimensions (L×W×H) | 2’150 × 1’300 × 1’950 mm | ||
| Weight (empty) | approx. 1’100 kg | approx. 1’270 kg | approx. 1’270 kg |
| Colour | silvergrey RAL 7001 | ||
Options:
MP-988 Microprocessor Controller for Digital Interfaces (RS-485 / RS-232 / Current Loop 20mA / CAN-bus / Profibus)
All possible voltages are available from 3 x 200 V to 3 x 600 V and 50/60 Hz.
The units are available conform to UL/CSA specifications. For the USA market the units are equipped with NPT-thread connections and the controller is adjusted to indicate °F.
