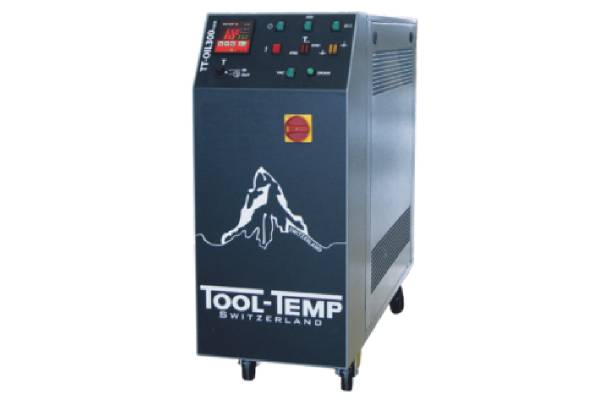

TT-OIL300
Temperature Control Unit
Compact, powerful oil unit up to 300°C for:
moulds, small rollers and plates
Option:
Safety and leak free with the seal less magnetic drive pump made by TOOL-TEMP
TECHNICAL DATA: |
||
| Temperature range | up to 300°C with heat transfer oil TOOL-THERM SH-3 | |
| Temperature control | self-optimizing, electronic microprocessor controller MP-888 with digital display of the set and actual value. Automatic temperature monitoring. |
|
| Flow control | electronically, with digital display and automatic control of the minimum flow. | |
| Heating capacity | 12 kW | |
| Cooling capacity | approx. 130 kW at 290°C circulating temperature | |
| Pump capacity | motor 1,8 kW | |
| Pressure mode | max. 5,5 bar / max. 100 l/min | |
| Vacuum mode | vacuum max. 8 mH2O | |
| Model Z | pump with axial face seal and triple bearing system | |
| Model A | pump with seal less magnetic drive | |
| Temperature measurement at the mould | yes | |
| Leakstopper and mould drain | yes | |
| Expansion tank capacity | 21 litres | |
| Filling Amount | 9 litres | |
| Expansion volume | 17 litres | |
| Connections | ||
| Oil circuit | 3/4″ BSP female thread | |
| Cooling water | inlet water filter 3/4″ BSP female thread outlet non-return valve 3/4″ BSP female thread |
|
| Dimensions (L×W×H) | 1’130 × 390 × 995 mm, incl. castors | |
| Weight | approx. 150 kg empty | |
| Colour | silvergrey RAL 7001, front RAL 7016 | |
Options:
MP-988 Microprocessor Controller for Digital Interfaces (RS-485 / RS-232 / Current Loop 20mA / CAN-bus / Profibus)
All possible voltages are available from 3 x 200 V to 3 x 600 V and 50/60 Hz.
The units are available conform to UL/CSA specifications. For the USA market the units are equipped with NPT-thread connections and the controller is adjusted to indicate °F.
