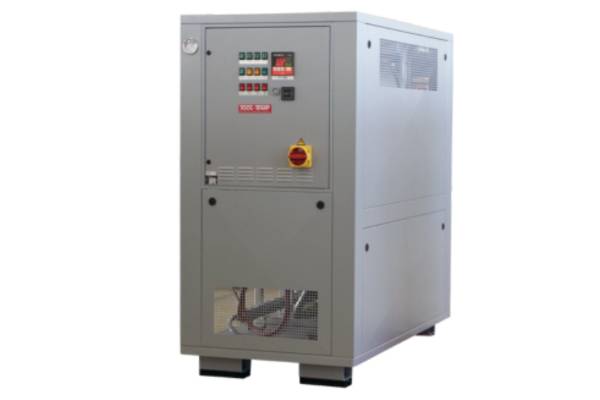

Heating and Cooling Unit
For temperatures from 80°C up to 300°C
Heating capacity 48 kW

Operational use:
rollers, plates, double walled vessels and other heavy duty use


Temperature range up to 300°C with heat transfer oil TOOL-THERM SH-3
Temperature control self-optimizing, electronic microprocessor controller MP-888 with digital display of the set and actual value.
Automatic temperature monitoring.
Flow control electronically, with digital display and automatic control of the minimum flow.
Heating capacity 48 kW
Switchable in stages 8 / 8 / 8 / 8 / 8 / 8
automatic shut down of the heating capacity which is not required.
version with 24 kW heating capacity also possible.
Cooling capacity max. 480 kW – see diagram
Pump capacity motor 4 kW
Pressure mode max. 4 bar / max. 260 l/min
Cooling water consumption 110 l/min (minimum 40 l/min, but leads to strong reduction of cooling capacity)
Expansion tank capacity 96 litres
Filling Amount 75 litres
Expansion volume 75 litres
Oil circuit Flange connection DN 32
flange-outside Ø 140 mm, with 4 holes Ø 18 mm on a screw hole circle of 100 mm
recommended ceiling: 80 x 42 x 2 mm
Cooling water 1 1/2″ BSP female thread (required water pressure 1.5 – 4 bar)
Dimensions (L×W×H) 1’710 × 790 × 1’540 mm
Weight approx. 520 kg empty
Colour silvergrey RAL 7001

MP-988 Microprocessor Controller for Digital Interfaces (RS-485 / RS-232 / Current Loop 20mA / CAN-bus / Profibus)

All possible voltages are available from 3 x 200 V to 3 x 600 V and 50/60 Hz.
The units are available conform to UL/CSA specifications. For the USA market the units are equipped with NPT-thread connections and the controller is adjusted to indicate °F.
