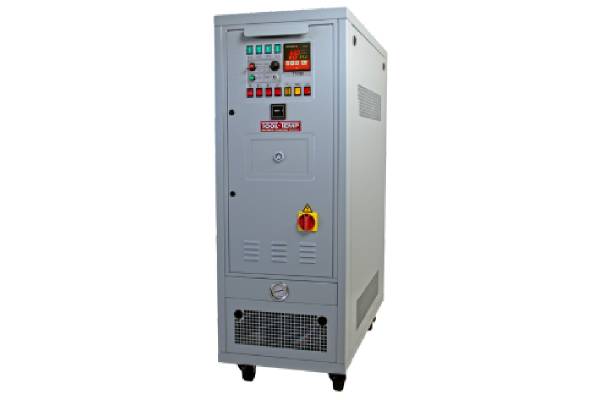

TT-390
Temperature Control Unit
For permanent temperatures up to 360°C with heat transfer oil
Heating capacity: 16 kW or 24 kW
Operational use:
Moulds in the die casting industry, small rollers and plates
Model Z pump with axial face seal
Model A pump with seal less magnetic drive
TECHNICAL DATA: |
TT-390 Z or A |
TT-390 Z or A |
Temperature range | up to 360°C with heat transfer oil TOOL-THERM SH-3 | |
Temperature control | self-optimizing, electronic microprocessor controller MP-888 with digital display of the set and actual value. Automatic temperature monitoring. |
|
Flow control | electronically, with digital display and automatic control of the minimum flow. | |
Heating capacity | 16 kW | 24 kW |
Switchable in stages | 8 / 8 | 8 / 16 |
Cooling capacity | 90 kW at 360°C circulating temperature | |
Pump capacity | motor 1,8 kW | |
Pressure mode | max. 5,5 bar / max. 100 l/min | |
Vacuum mode | vacuum max. 8 mH2O | |
Model Z | pump with axial face seal and triple bearing system | |
Model A | pump with seal less magnetic drive | |
Temperature measurement at the mould | yes | yes |
Leakstopper and mould drain | yes | yes |
Expansion tank capacity | 21 litres | 21 litres |
Filling Amount | 15 litres | 21 litres |
Expansion volume | 16 litres | 16 litres |
Connections | ||
Oil circuit | 3/4″ BSP female thread | |
Cooling water | 1“ BSP male thread inlet water filter 1“ BSP female thread outlet non-return valve 1“ BSP female thread |
|
Dimensions (L×W×H) | 1‘240 × 480 × 1‘400 mm, incl. castors | |
Weight | approx. 205 kg empty | approx. 215 kg empty |
Colour | silvergrey RAL 7001 |
Options:
MP-988 Microprocessor Controller for Digital Interfaces (RS-485 / RS-232 / Current Loop 20mA / CAN-bus / Profibus)
All possible voltages are available from 3 x 200 V to 3 x 600 V and 50/60 Hz.
The units are available conform to UL/CSA specifications. For the USA market the units are equipped with NPT-thread connections and the controller is adjusted to indicate °F.
