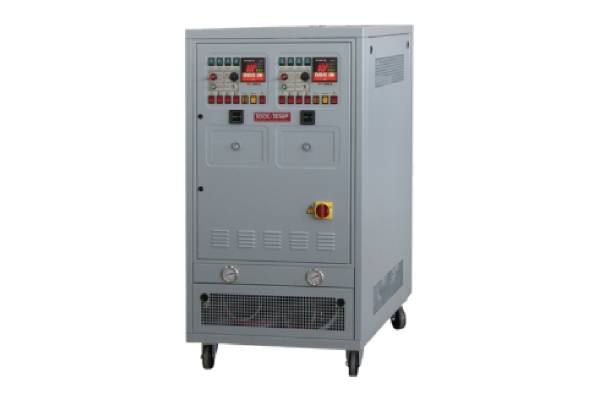

TT-390/2
Temperature Control Unit
For permanent temperatures up to 360°C with heat transfer oil
Heating capacity: 2 x 16 kW or 2 x 24 kW
Operational use:
Moulds in the die casting industry, small rollers and plates
Model Z pump with axial face seal
Model A pump with seal less magnetic drive
TECHNICAL DATA: |
TT-390/2 Z or A |
TT-390/2 Z or A |
| Temperature range | up to 360°C with heat transfer oil TOOL-THERM SH-3 | |
| Temperature control | self-optimizing, electronic microprocessor controller MP-888 with digital display of the set and actual value. Automatic temperature monitoring. |
|
| Flow control | electronically, with digital display and automatic control of the minimum flow. | |
| Heating capacity | 2 x 16 kW | 2 x 24 kW |
| Switchable in stages | 2 x 8 / 8 | 2 x 8 / 16 |
| Cooling capacity | 90 kW at 360°C circulating temperature | |
| Pump capacity | motor 1,8 kW | |
| Pressure mode | max. 5,5 bar / max. 100 l/min | |
| Vacuum mode | vacuum max. 8 mH2O | |
| Model Z | pump with axial face seal and triple bearing system | |
| Model A | pump with seal less magnetic drive | |
| Temperature measurement at the mould | yes | yes |
| Leakstopper and mould drain | yes | yes |
| Expansion tank capacity | 1 x 46 litres | 1 x 46 litres |
| Filling Amount | 1 x 30 litres | 1 x 42 litres |
| Expansion volume | 1 x 36 litres | 1 x 36 litres |
| Connections | ||
| Oil circuit | 3/4″ BSP female thread | |
| Cooling water | 1“ BSP male thread inlet water filter 1“ BSP female thread outlet 1“ BSP female thread |
|
| Dimensions (L×W×H) | 1‘240 × 720 × 1‘400 mm, incl. castors | |
| Weight | approx. 335 kg empty | approx. 375 kg empty |
| Colour | silvergrey RAL 7001 | |
Options:
MP-988 Microprocessor Controller for Digital Interfaces (RS-485 / RS-232 / Current Loop 20mA / CAN-bus / Profibus)
All possible voltages are available from 3 x 200 V to 3 x 600 V and 50/60 Hz.
The units are available conform to UL/CSA specifications. For the USA market the units are equipped with NPT-thread connections and the controller is adjusted to indicate °F.
